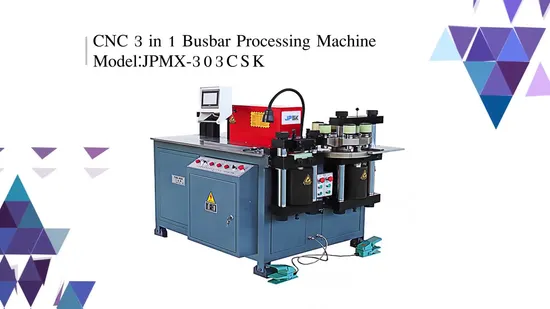

380V 50Hz Three in One CNC Copper Busbar Processing Machine with CE
- Overview
- Product Description
- Main Feature
- Detailed Photos
- Packaging & Shipping
Basic Info.
| Model NO. | JPSK-303CSK |
| Automation | Semi-Automatic |
| Suitable for | Aluminum, Copper |
| Power | 1*4kw |
| Weight | 1220kg |
| Voltage | Customized |
| Certificate | CE & ISO9001 |
| Processing Range | 160*12mm |
| Usage | Cutting/Punching/Bending Copper Busbar |
| Transport Package | Standard Plywood Case |
| Specification | 1720*1220*1240mm |
| Trademark | JPSK |
| Origin | China |
| HS Code | 8462429000 |
| Production Capacity | 2000 Set/Year |
Product Description
This series High Quality JPSK-303CSK CNC Busbar Machine Copper Busbar Bending Machine has three units: punching, shearing and bending. It is used to process copper and aluminum busbars in different specification.Processing material: Brass/Copper and Alumimum Busbar. Functions: 1. Bending at vertical and horizontal direction. 2. Punching for round and oblong hole. 3. Cutting busbar. 4. Special for embossing, knurling, twisting, cable joints pressing.
1. The cut surface is smooth and neat, no droop, no burrs, no waste 2. Rotary turret punch unit installed 6 dies, less replacing, high efficiency 3. Controlled by PLC, bending precision at ±1 degree and repeat degree at ±0.3 degree 4. Manual button and foot switch are optional 5. Adjustable working stroke 6. On users requirement, special mold for special shape
Product Description
Main Feature
Detailed Photos
| Function | Model | JPSK-303CSK |
| Punching | Max. punching force (Kn) | 300 |
| Max. punching diameter range (mm) | 4.3-25 | |
| Max. thickness (mm) | 12 | |
| Max. width (mm) | 160 | |
| Cutting | Max. cutting thickness (mm) | 12 |
| Max. width (mm) | 160 | |
| Horizontal bending | Max. bending force (Kn) | 300 |
| Max. thickness (mm) | 12 | |
| Max. width (mm) | 160 | |
| Vertical bending | Max. thickness (mm) | 10 |
| Max. width (mm) | 100 | |
| Min angle (degree) | 90° | |
| Power | kw | 1×4kw |
| Bending precision | Bending precision | ±1° |
| Repeat bending precision | ±0.5° | |
| Out dimension | mm | 1720×1220×1240 |
| Weight | kg | 1220 |
